High Pressure Parallel Reactors

High Pressure Parallel Reactors 2019-11-15T22:15:54+00:00

Designed for use with a simple counter top magnetic stirrer or mixer / hotplate

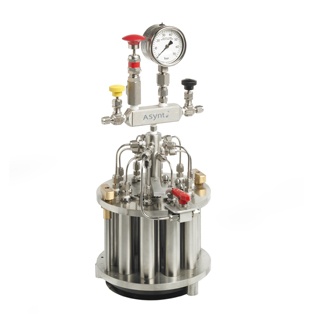

The Asynt Multicell Parallel High Pressure Reactor is a cost effective lightweight unit made of 316 Stainless Steel suitable for numerous mixed or unmixed applications. These include hydrogenations using air-sensitive materials and applications or other reactions where pressure or temperature is required.

As standard, this gives the user the ability to screen 10 x 30 ml reactions at pressures up to 50 bar and 200 ° C at the same pressure and temperature. We now offer an upgrade to the system to meet a wider range of requirements:

  • Pressures higher than 100bar
  • Temperatures up to 350C
  • Individual temperature control for each reactor cell
  • Alternative materials are described, for example, in Hastelloy, Inconnel.
  • Larger volumes (4 positions) up to 150 ml
  • Sampling under pressure
  • Additions under pressure
  • Individual pressure setting for each reactor cell.

In addition, we can still offer special versions to meet your needs more precisely.
Chemistry:

  • carbonylations
  • reduction operations
  • Homogeneous and heterogeneous catalysis
  • Catalyst Scanning, reaction optimization and material testing
  • Parallel synthesis
  • Supercritical studies
  • Corrosion test
