| Ship | Double Jacketed Dish Lower Core |
Single Wall Plate Lower Core |
Air Lifting Vessel | Single Wall Plate Lower Core With Heating Blanket |
Single Wall Flat Bottom Ship with heating Main unit |
Solid state |
| Series FS-VA | Series FS-VB | Series FS-VC | Series FS-VB | Series FS-VD | FS-V-SA05P | |
* For cell culture, it is equipped with serrated blade.
| controller | Duo heating control (FS-05, FS-06, FS-07) | |||||
| Ship | Double Jacket
(FS-VA series) |
Single Wall
(FS-VB series) |
Air Lifter
(FS-VC series) |
Single Wall
Heating blanket (FS-VB series) |
Single Wall
Heating Unit (FS-VD series) |
Solid state
(FS-V-SA05P) |
| H: D ratio | 2: 1 | 2: 1 | 3: 1 | 2: 1 | 2: 1 | 2: 1 |
| Mixing motor | Brushless motor | Brushless motor | N / A | Brushless motor | Brushless motor | Brushless motor |
| Wheel * | Rushton type | Rushton type | N / A | Rushton type | Rushton type | Multi Type |
| Temperature range | 5 ° C above the coolant 60 ° C | Coolant above 5 ° C to 60 ° C | Coolant above 5 ° C to 60 ° C | Coolant above 5 ° C to 60 ° C | Coolant above 5 ° C to 90 ° C | Coolant above 5 ° C to 60 ° C |
| Core size | 500 ml – 10 L | 1 – 10 L | 5 L only, single or double jacketed | 1 – 20 L | 3 – 10 L | 5 L |
| Speed limit | 30-1,800rpm
(500 ml, 1L) 30-1,200rpm (3, 5L) 30-1,000rpm (10 L) |
30-1,800rpm
(1 L) 30-1,200rpm (3, 5L) 30-1,000rpm (10 L) |
N / A | 30-1,800rpm
(1 L) 30-1,200rpm (3, 5L) 30-1,000rpm (10 L) 30-700rpm (15, 20L) |
30 – 1200 d / d
(3 – 5 L) 30 – 1000 rpm (10 L) |
1 – 60 rpm |
| Heating | Built-in heat exchanger | Heating blanket | Heating main unit | Built-in heat exchanger | ||
| Cooling | External coolant, automatic coolant valve | |||||
| Ventilation | Orifice Ring Sparger | Orifice Ring Sparger | PTFE micro sparger | Orifice Ring Sparger | Orifice Ring Sparger | Grounding point:
shaft sparger |
| Grounding point | Not necessary | Not necessary | Yes | Not necessary | Not necessary | Not necessary |
| Application | Perfect for temperature
Precision and cutting force such as sensitive cells mammal and insect cell cutlure |
Great for aerobics or
anaerobic microbial culture; Suitable for plant cell and photosynthesis cell culture |
Perfect for
shear-sensitive cells; Ideal for plant cells, fungal cells, algae cells and p photosynthesis cell culture |
Ideal for fast temperature
aerobic change and anaerobic microbial (bacteria and yeast) fermentation |
Perfect for aerobics and
anaerobic microbial (bacteria, yeast) E.coli-like culture |
Substrates with low water levels, which are generally suitable for fungi such as filamentous fungi, are particularly suitable for dicrobial culture. |
| Ship | Double Jacket
(FS-VA series) |
Single Wall
(FS-VB series) |
Air Lifter
(FS-VC series) |
Single Wall with Heating Blanket
(FS-VB series) |
Single Walled
Heating Unit (FS-VD series) |
Solid state
(FS-V-SA05P) |
| Mammalian cell culture | ● ● | ● ○ | ○○ | ● ○ | ○○ | ○○ |
| Aerobic microorganism culture (Note 1) | ● ● | ● ● | ● ● | ● ● | ● ● | ○○ |
| Micro-aerobic microorganism culture (Note 2) | ● ● | ● ● | ○○ | ● ● | ● ● | ○○ |
| Anaerobic microorganism culture (Note 3) | ● ● | ● ● | ○○ | ● ● | ● ● | ○○ |
| Fragile cell culture (Note 4) | ● ● | ● ○ | ● ● | ● ○ | ○○ | ○○ |
| Photosynthesis cell culture (Note 5) | ● ○ | ● ● | ● ● | ○○ | ● ○ | ○○ |
| Plant cell culture | ● ○ | ● ○ | ● ● | ○○ | ○○ | ○○ |
| Insect cell culture | ● ● | ● ○ | ○○ | ● ○ | ○○ | ○○ |
| Solid State(FS-V-SA05P) | ○○ | ○○ | ○○ | ○○ | ○○ | ● ● |
- ●Excellent● ○ Good ○ ○ Not Recommended
Note:
- Some bacteria; Yeast; Mushroom
- Facultative culture (eg, some Lactobacillus; ethanol production)
- Same as note 2
- This container is perfect for precision cells that can be easily cut by any type of mechanical propeller.
- Plant, algae, cyanobacteria (blue-green algae)
Ship features
| Ship type | Double Jacket Dish Bottom Container (FS-VA series) | ||||
| Material | Borosilicate glass / 316L stainless steel for sheet metal and all fittings | ||||
| Working volume** | 500ml | 1L | 3L | 5L | 10L |
| Total volumeΔ | 1L | 1.5L | 3.8L | 6.8L | 12.5 L |
| Ship type | Single Wall Plate Bottom Length Boat (FS-VB series) | |||
| Material | Borosilicate glass / 316L stainless steel for sheet metal and all fittings | |||
| Working volume** | 1L | 3L | 5L | 10L |
| Total volumeΔ | 1.5L | 3.8L | 6.8L | 12.5 L |
| Ship type | Air Lifting Vessel (FS-VC series) * | |
| Material | Borosilicate glass / 316L stainless steel for sheet metal and all fittings | |
| Working volume** | 5L single wall | 5L double jacketed |
| Total volumeΔ | 7L | |
| Ship type | Single Wall Plate Bottom Cap with Heating Blanket (FS-VB series) | |||||
| Material | Borosilicate glass / 316L stainless steel for sheet metal and all fittings | |||||
| Working volume** | 1L | 3L | 5L | 10L | 15L | 20L |
| Total volumeΔ | 1.5L | 3.8L | 6.8L | 12.5 L | 18.7L | 23.7L |
| Ship type | Single Wall Flat Bottom Core with Heating Base Unit (FS-VD series) | ||
| Material | Borosilicate glass / 316L stainless steel for sheet metal and all fittings | ||
| Working volume** | 3L | 5L | 10L |
| Total volumeΔ | 3.7L | 6.7L | about 13.1 L |
| Ship type | Solid State(FS-V-SA05P) | ||
| Material | Borosilicate glass / 316L stainless steel for sheet metal and all fittings | ||
| Working volume** | 5L | ||
| Total volumeΔ | 6.8L | ||
* FS-A-CON04 is pre-configured as standard in Air Damper Containers. All types can be purchased on 3L vessels.
** Recommended Max.
Δ Total volumes are approximate and may vary slightly.

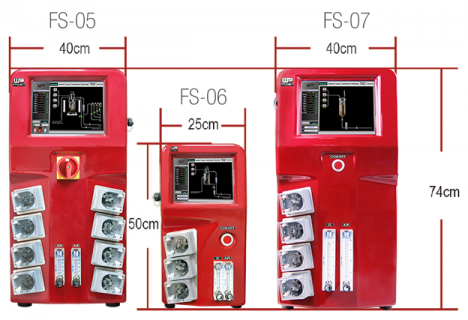

Winpact controller selection guide
| Cat. No. | FS-05 | FS-06 | FS-06 + FS-06-EPM * | FS-07 |
| model | Winpact Paralel | Winpact One | Winpact One | Winpact Evo |
| Heating system | Duo Heating ** | |||
| Operating volume range | 500ml – 20L | 500ml – 10L | 500ml – 10L | 500ml – 20L |
| Autoclaves, glass containers | yes | |||
| Interchangeable ships | Yes, all kinds | |||
| Number of vessels checked per controller | 2 | 1 | 1 | 1 |
| Number of vessels controlled by remote software | ||||
| Touch control | 10.4″ | 8″ | 8″ | 10.4″ |
| Number of peristaltic pumps | 8 | 3 | 3 | 4 |
| Gas mixing options | Available | no | Available * | Available |
| Oxygen enrichment | Available | no | Available * | Available |
| Mass flow controller | Available | no | no | Available |
| Closed gas analyzer | Available | no | no | Available |
| ORP probe | Available | no | Available * | Available |
| Lighting module | Available | no | Available * | Available |
| External pump | multiple | 1 max. | 2 max. | multiple |
| Solid State (FS-V-SA05P) | no | no | no | Available |
* The optional expansion module (FS-06-EPM) is required.
** Duo Heating: Combined Thermostat System and Dry Heating System.
