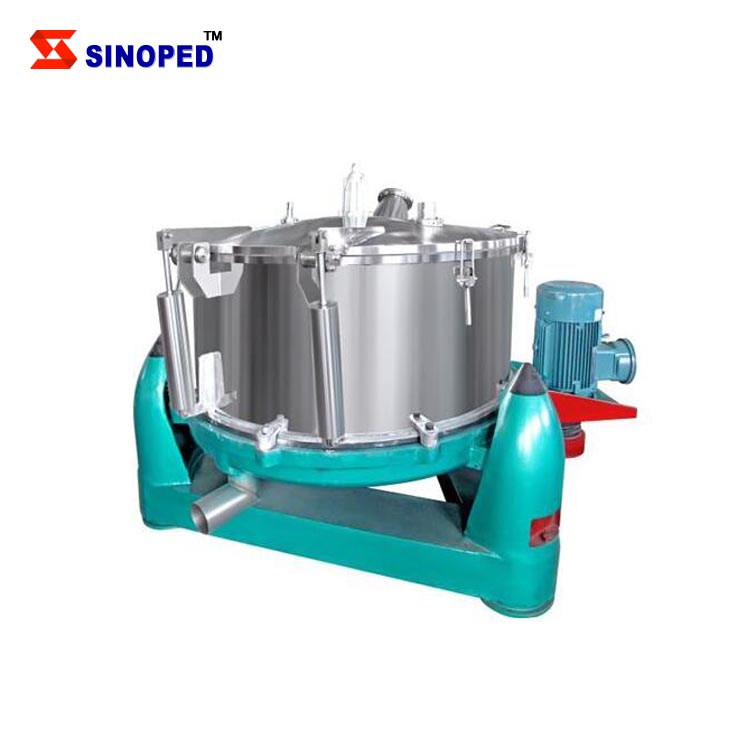

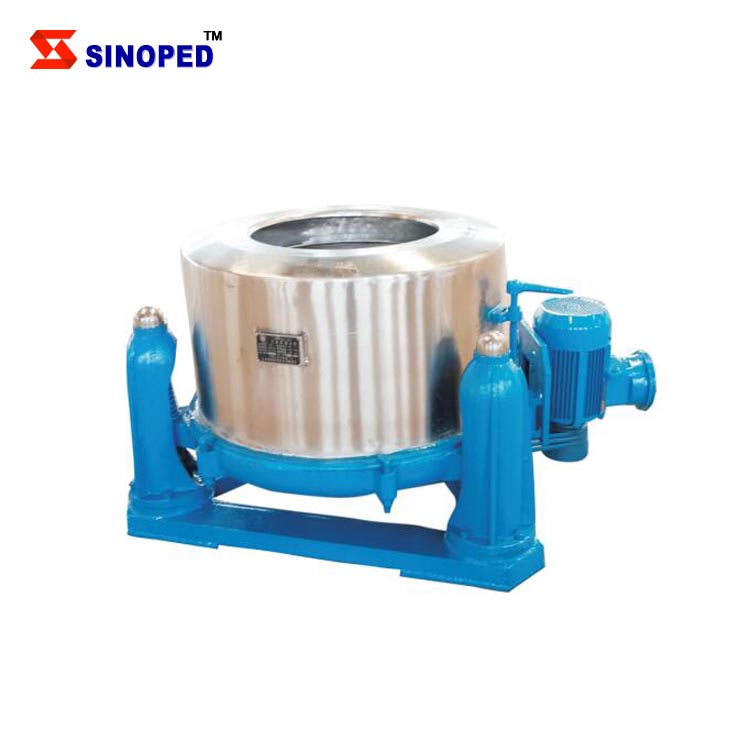

Product description: MiIt is suitable for crown-quality solid particulate, crystalline and pointed particles or suspension fluid containing a whole material. Widely used in pharmacy, food, chemical, light industry, environmental fields.
Working Principle
The motor drives the clutch along the bead peak to power the drum, which causes the drum to rotate about its axis to form a centrifugal force field, then the centrifugal force pushes the balanced material onto the drum to separate the solid and the liquid. The liquid penetrates the solid and the filter screen cavity, then is discharged into the main cavity cavity and discharged from the bottom liquid outlet, the solid material rests in the drum and is discharged manually from the top as the machine shuts down. down.
The SSL direct connection centrifuge uses a special dual-speed (or single-speed) direct-coupled motor to transfer power to the drum, particularly suitable for sterile, explosion-proof environments.
The SCS sedimentation centrifuge moves the slip fluid nozzle towards the center of the drum as it feeds, the material enters the centrifugal force field from the upper supply tube into the centrifugal force field, acting as the centrifugal force. The drum wall and the slag become, after a while, the sedimentation is separated, the surface layer using the tangential velocity of the shear fluid pipe is absorbed from the machine by radial movement. When the slab becomes a certain thickness layer, it will be removed manually when the machine is shut down.
Main application
Suitable for micron grade solid granules, crystal and spinning particles or suspension fluid containing a whole material. Widely used in pharmacy, food, chemical, light industry, environmental protection industry and so on. Used in areas. For example: Gypsum, ammonium ferric sulphate dodecahydrate, cupric sulphate, thiamine, mirabilite, nickel sulfate, potassium chloride, acetic acid, borax, soda, rubber additives, dyes, pigments, plastic raw materials, soap, oil, resin, salt, MSG, food additives, starch sugar, vitamins, antibiotics and other drugs, herbicides, insect repellent;
Standard Configuration
1.Common (explosion-proof) engine + Common (anti-static anti-inflammation) triangular belt + friction clutch clutch + manual friction brake.
2. Construction: The shell is fastened to the base plate without the top cover.
3. Building Material: The drum base adopts carbon steel or cast iron coated with bearing base and base plate SUS304; Machine foot is cast iron surface with pedestal painting, drum and shell are made of 304 stainless steel.
4. Motor belt wheel safety guard cover.
