Product Introducation

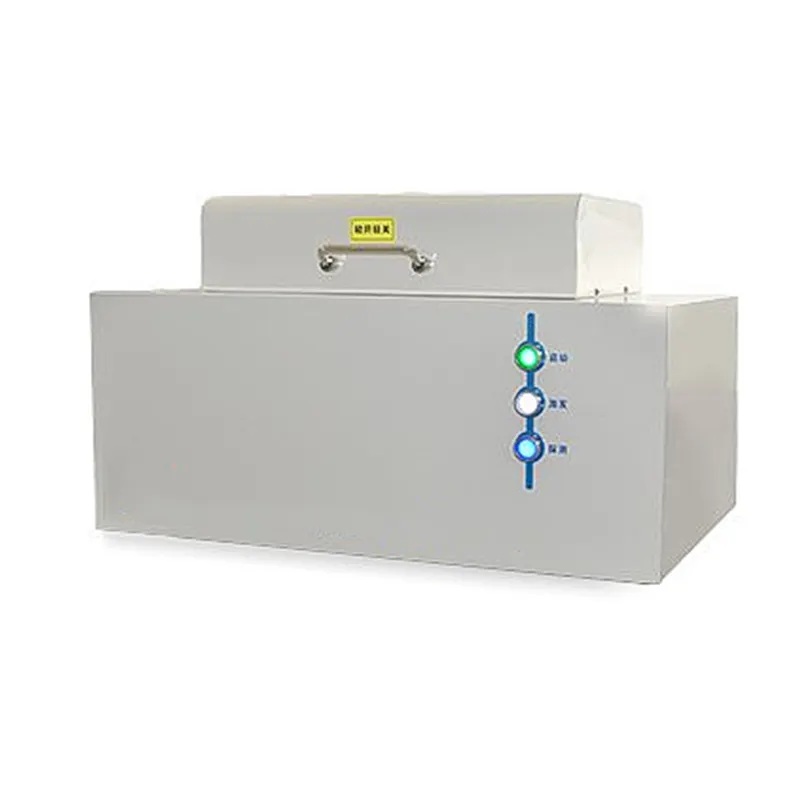

HNJC-XT1 X-ray fluorescence spectrometer adopts energy dispersive X-ray fluorescence technology. Its principle is to emit X-rays through an X-ray tube to irradiate the sample, measure and analyze the X-ray fluorescence generated by the sample, and then know the elemental composition of the sample and obtain qualitative and quantitative information in the substance.
Performance Features of HNJC-XT1 Instrument:
Determination elements: sodium (Na)-uranium (U) elements in the periodic table.
Content range: ppm-100%.
Sample form: solid, liquid, and powder samples can be directly detected.
Detector: electrically cooled SDD detector
Operation characteristics: hydraulic power opening and closing, large sample chamber design
Temperature control: adaptive constant temperature control system.
Safety performance: maze design, lead shielding and interlocking design for the X-ray generating part.
Fast analysis speed, timely provision of analysis data to guide production. Each sample obtains analysis results within a few minutes,Greatly improve work efficiency.
Customized Chinese operating software, complete functions, simple and easy to learn, suitable for laboratory use.
Main Technical Index
Detector
Typical resolution 129ev
Output count rate 700KCPS
Peak-to-back ratio>15000, peak-to-tail ratio greater than 1800
Window features: ultra-thin window
Increase the signal acquisition strength of light elements Processor: Original imported multi-channel data acquisition system
X-ray Tube
| High voltage | 0-50Kv continuously adjustable |
| Current | 0-1000uA continuously adjustable |
| Power | 50W |
| Stability | 0.2% for 8 hours |
High Voltage Generator
| Input voltage | 24VDC |
| Input current | 4A |
| Output voltage | 50Kv 1mA |
| The most powerful power | 50W |
| Stability | 0.05% for 8 hours |
High Voltage Generator
| Input voltage | 24VDC |
| Input current | 4A |
| Output voltage | 50Kv, 0~4mA |
| Maximum power | 50W |
| Stability | 0.05% for 8 hours |
Spectral analysis system control and data processing system
16-bit analog/digital converter
24-inch monitor
branded computer
512G solid-state drive
multi-function standard keyboard
laser printer
Dimensions
| Testing methods | standard curve method, theoretical coefficient method, basic parameter method, etc. according to customer needs |
| Working environment temperature and humidity range | temperature 5~30℃℃, relative humidity less than or equal to 80% |
| Power supply requirements | 220V+10%, 50HZ |
| Appearance size | 735mm*470mm*480mm |
| Weight | about 65Kg |
