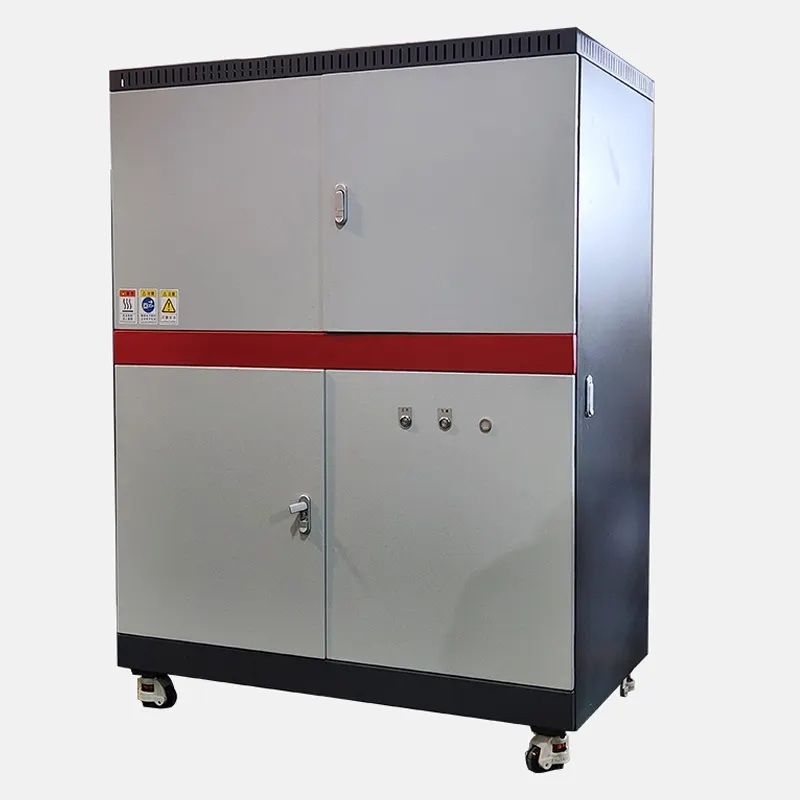

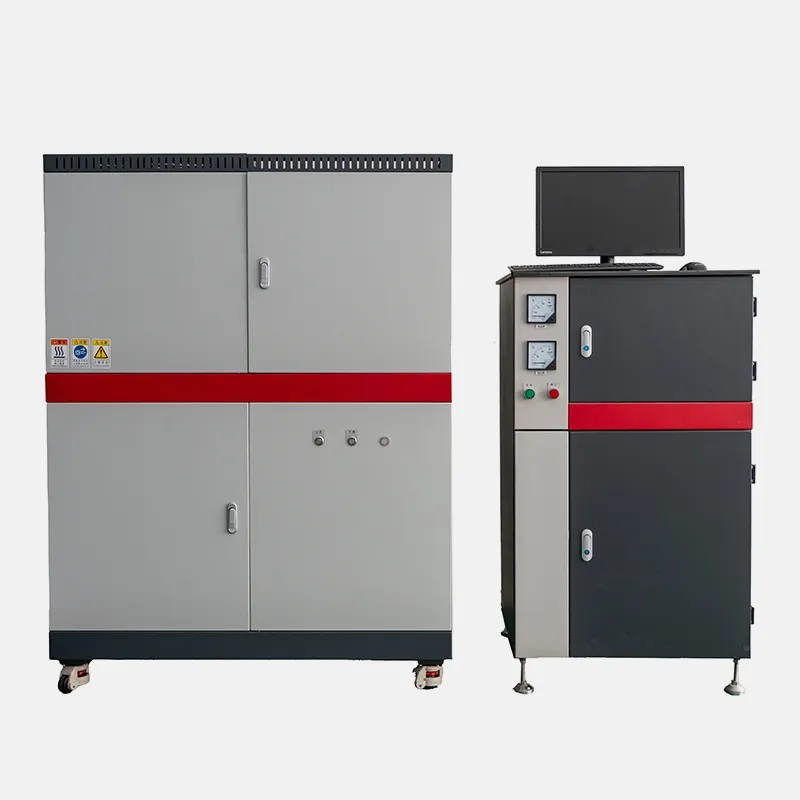

Laboratory refractoriness testing machine

Refractoriness is mainly to characterize the degree of melting and softening of the material under the action of no load and high temperature, which is one of the important quality indicators of refractory materials. The measurement method: the test material is made into a truncated triangular cone with specified size, heating the cone at certain heating rate, its tip will make contact with the chassis due to its own weight at the temperature , which is the refractoriness of the test material.

This series of instruments has completely independent property rights, which can be used to test the material under the action of high temperature to reach a specific degree of softening temperature, record morphological changes, automatically analysis and process data and images collected by the exclusive measurement and control software in real time. It is a fully automatic image analysis test furnace in the industry.

The refractoriness test furnace can be used to test the refractoriness of refractory materials below 1900℃. GM1900 high temperature silicon platinum is used as the heating element, B-type thermocouple temperature measurement, high-precision temperature control module control the heating rate accurately, the industrial image acquisition system collect images in real time and displays them on the computer monitor, and the test report can be printed out after test, which contains pictures and temperature information.
