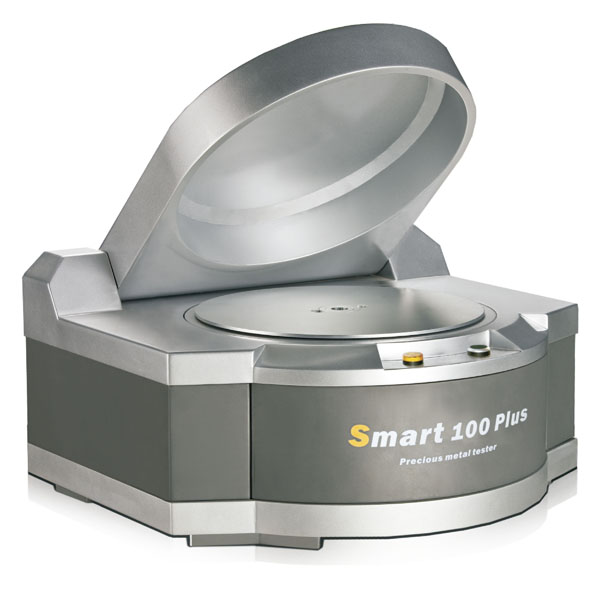

Smart 100 X-Ray Fluorescence Spectrometer is our most advanced instrument for Precious Metals Analysis. Thanks to new generation Silicon Drift Detector (X-SDD) and multi-channel technology, Smart 100 is able to analyze Precious Metals of all sizes and get accurate results in 2 seconds.
Features
- Skyray most advanced detection technology – Silicon Drift Detector (X-SDD), with resolution as low as 125eV
- Digital multichannel technology improves efficiency with 30 kcps countrate
- High-power X ray tube and automatic collimation/filter system provides higher excitation efficiency
- Optical shutter system improves test efficiency and accuracy
- 2D movable sample platform – supports image control and multi-point testing
- Detection of samples as small as 1 mm
Application Fields
- Precious metal metallurgical plant and precious metal recovery
- Jewelry stores and jewelry processing
- Precious metals inspection, analysis and testing
| Technical Specifications | |
|---|---|
| Measurable elements: | Sulfur ( S ) – Uranium ( U ) |
| Measurement Accuracy | as low as 0.03% for samples over 96% content |
| Analysis Range: | ppm up to 99.999% |
| Work temperature: | 10°C-35°C |
| Detector: | X-SDD |
| Test time: | 2-10 seconds |
| Power: | AC 220V ± 5V or AC 110V ± 5V |
| X-Ray Tube | Tube voltage(Max)-50Kv Tube current(Max)：1mA |
| Size: | 70cm x 62cm x 38cm |
| Weight: | 100 kg |
